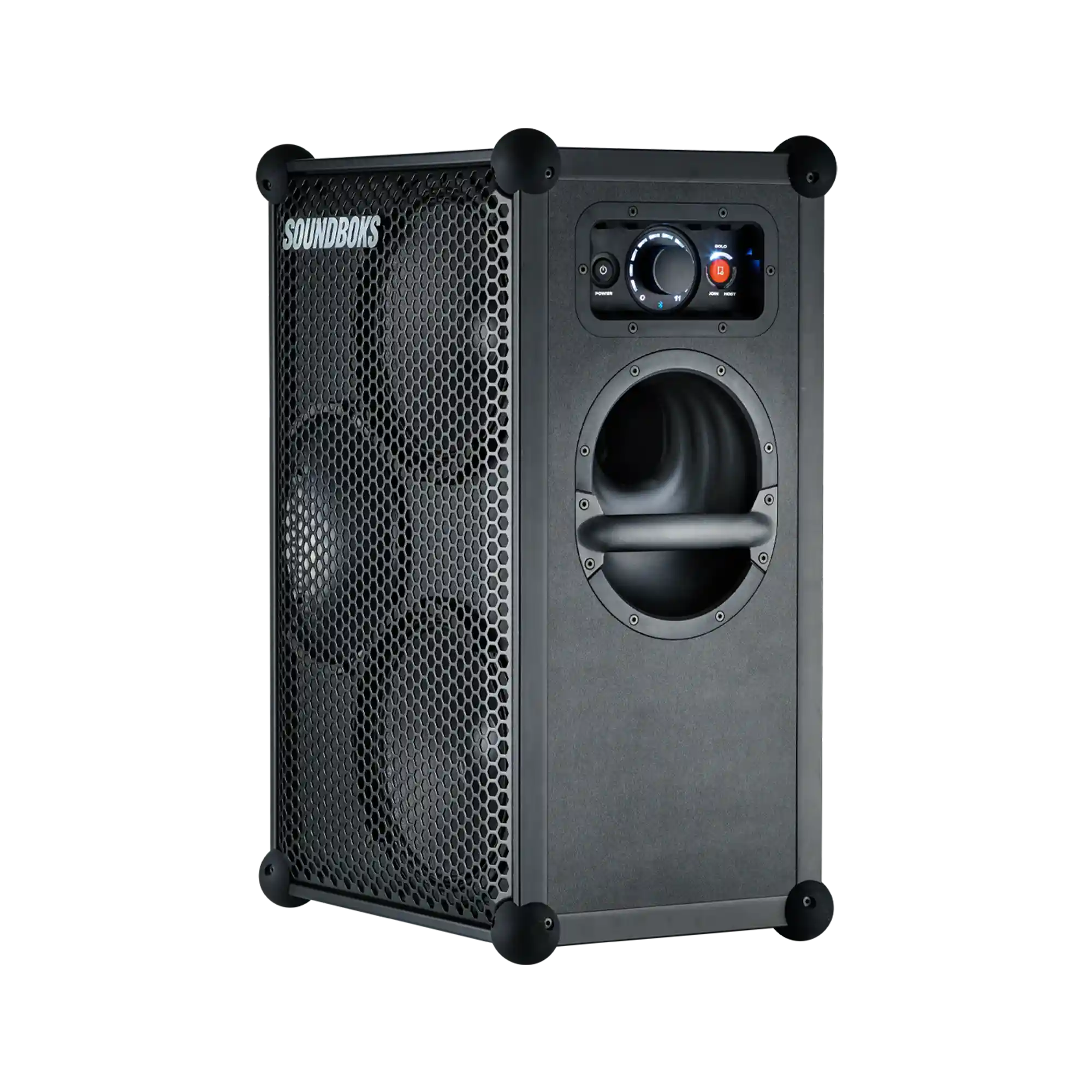

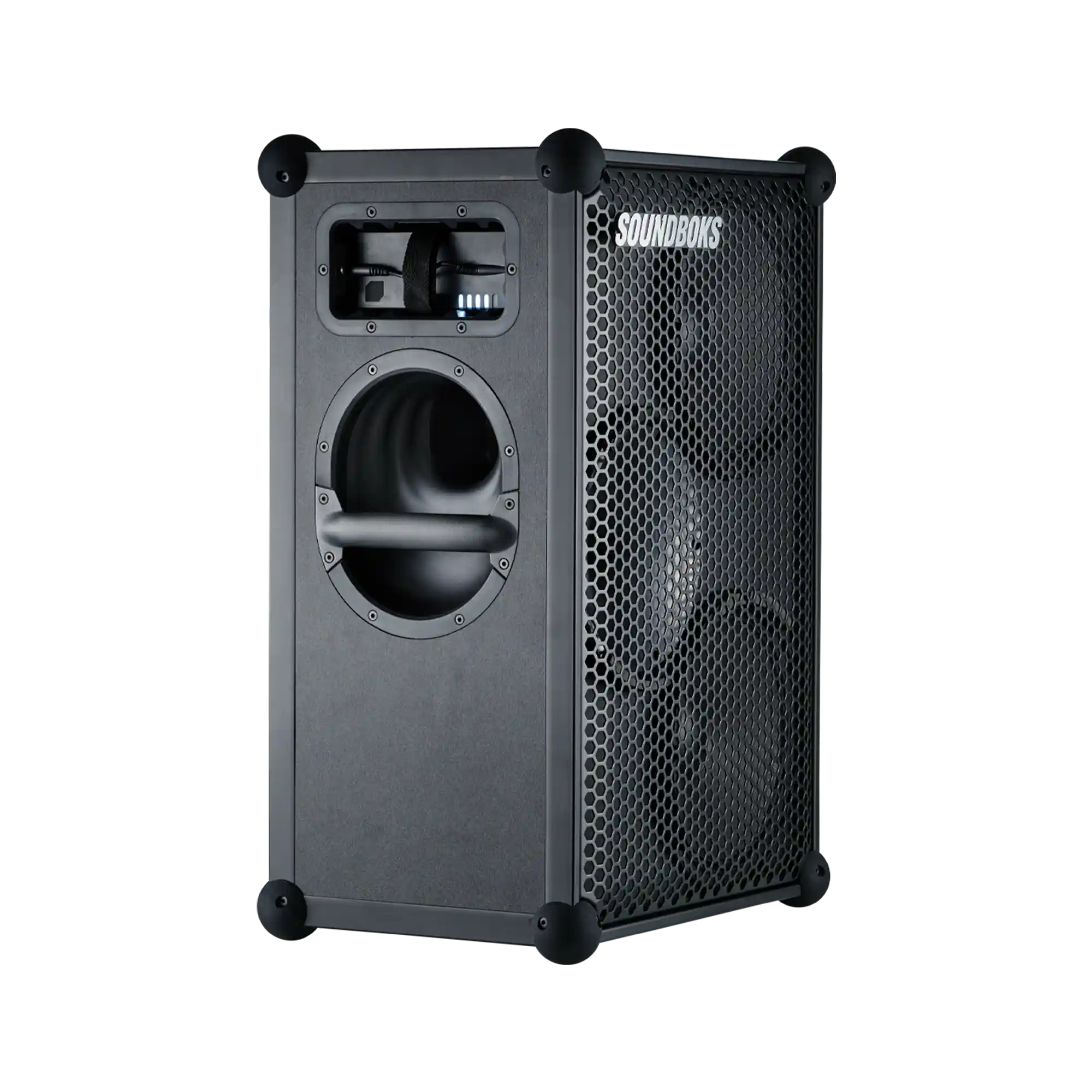

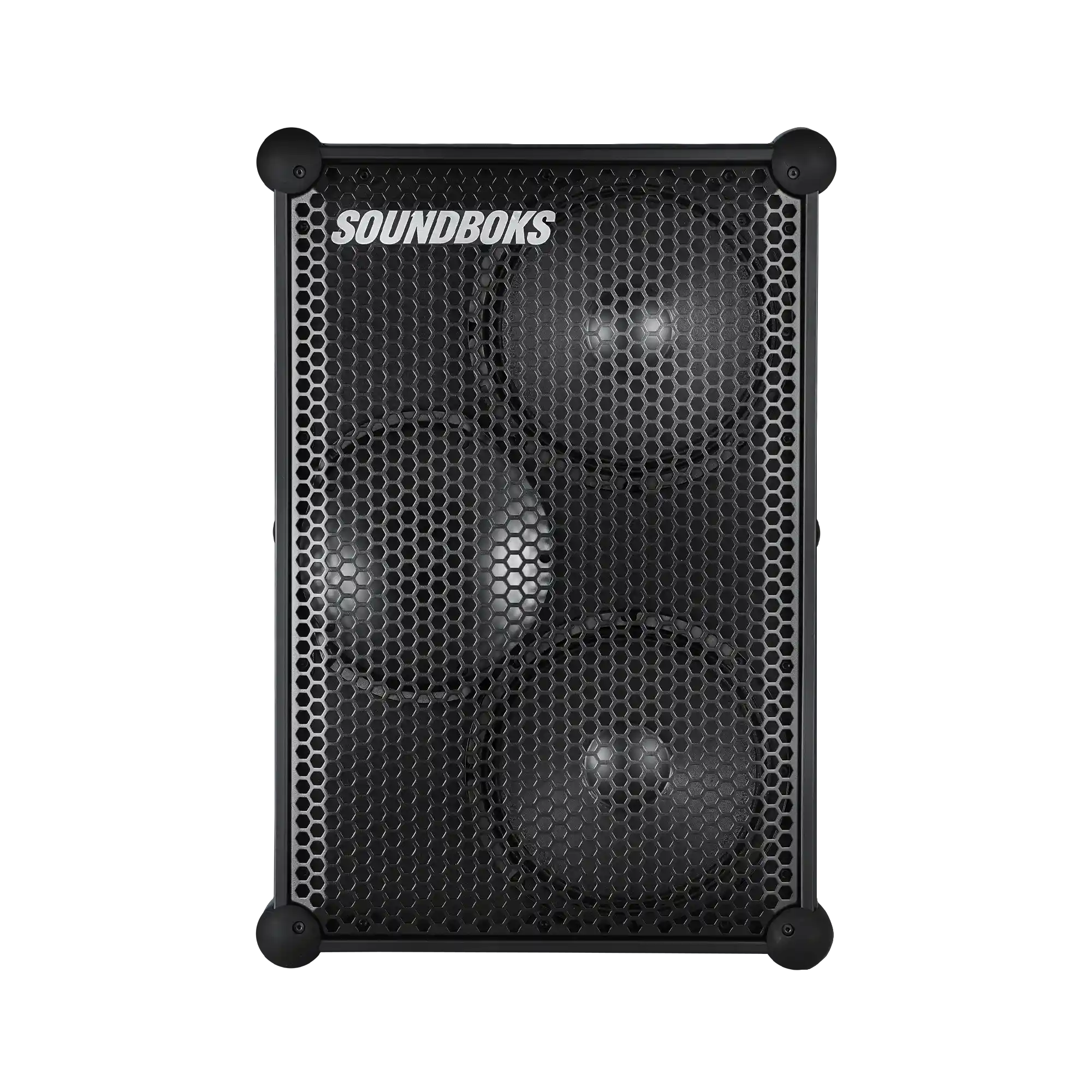

SOUNDBOKS (GEN. 3) REFURBISHED

DIMENSIONS

66 × 43 × 32 cm (H × W × D)

FEATURES
Swappable grill and batteries
IP65 rated electronics coating
Pulse Reflex Port

UI PANEL
▪ Volume control
▪ Host/Join mode for wireless TeamUP

SOUND

AMPLIFIER
Merus Audio eximo® amp switching
3 × 72W RMS class D amplifiers
Advanced Bass DSP

ACOUSTICS
Effective frequency range: 40Hz - 20kHz
Custom sound profile with bass enhancer

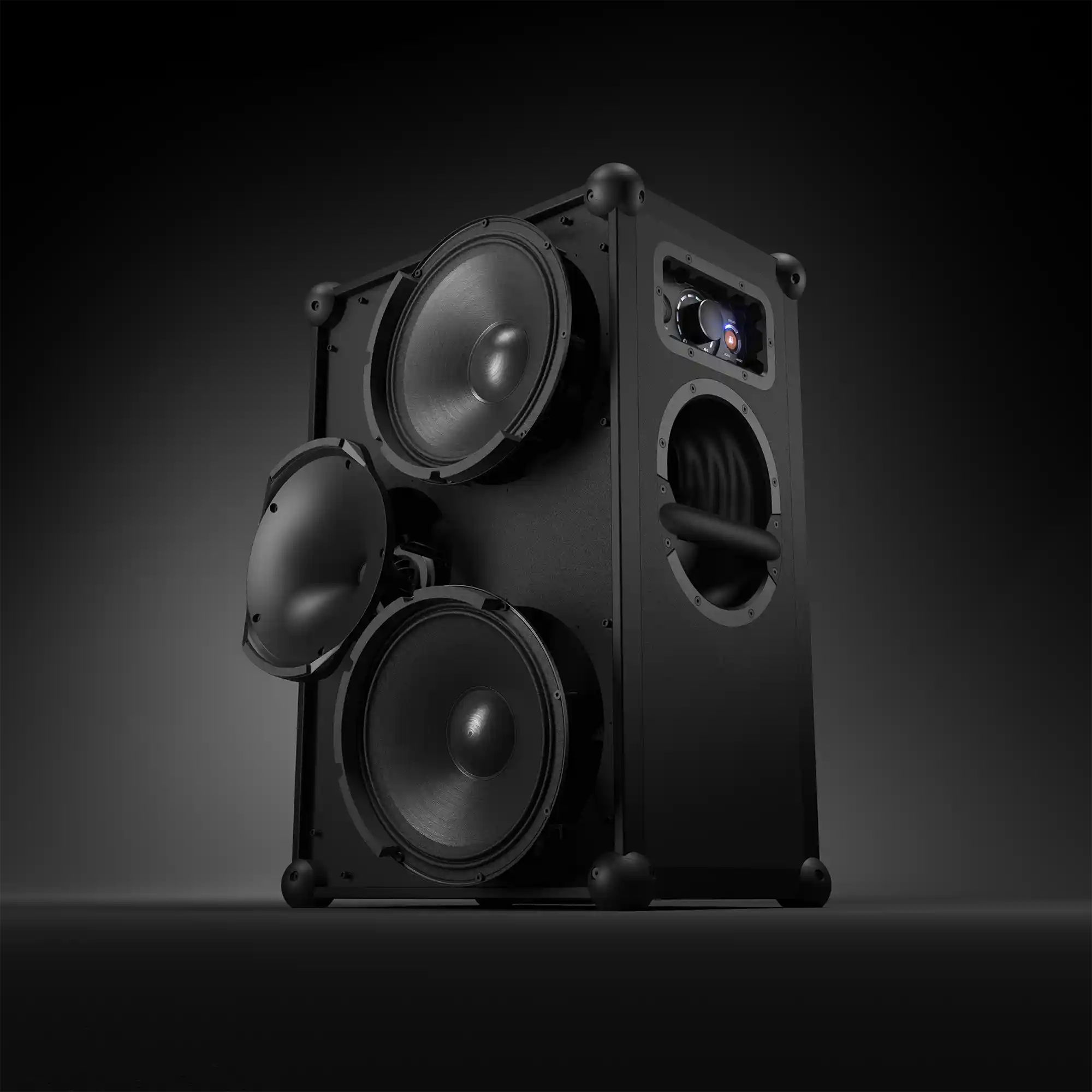

DRIVER UNITS
2 × 10” 96dB woofers
1 × 1” 104dB compression driver tweeter

BUILD

WEIGHT
15.4 kg

MATERIALS
Poplar cabinet
Powder-coated aluminum frame
Powder-coated steel grill and handles
Silicone ball corners
SMP temperature-flex adhesive

BATTERY

LIFE
40 hours at mid-volume
5 hours at full volume
3.5 hours full recharge

DESIGN
5-step LED battery-life indicator
Heavy-duty DC-connector

CELL TYPE
12.8V, 7.8Ah Lithium Iron Phosphate (LiFePO4)
-10C to 40C temperature range
99.84Wh or 7.8Ah capacity

BATTERY MANAGEMENT SYSTEM (BMS)
Over and under-discharge protection
Short circuit protection
Overheat protection
Cell voltage management

CONNECTIVITY

Bluetooth 5.0

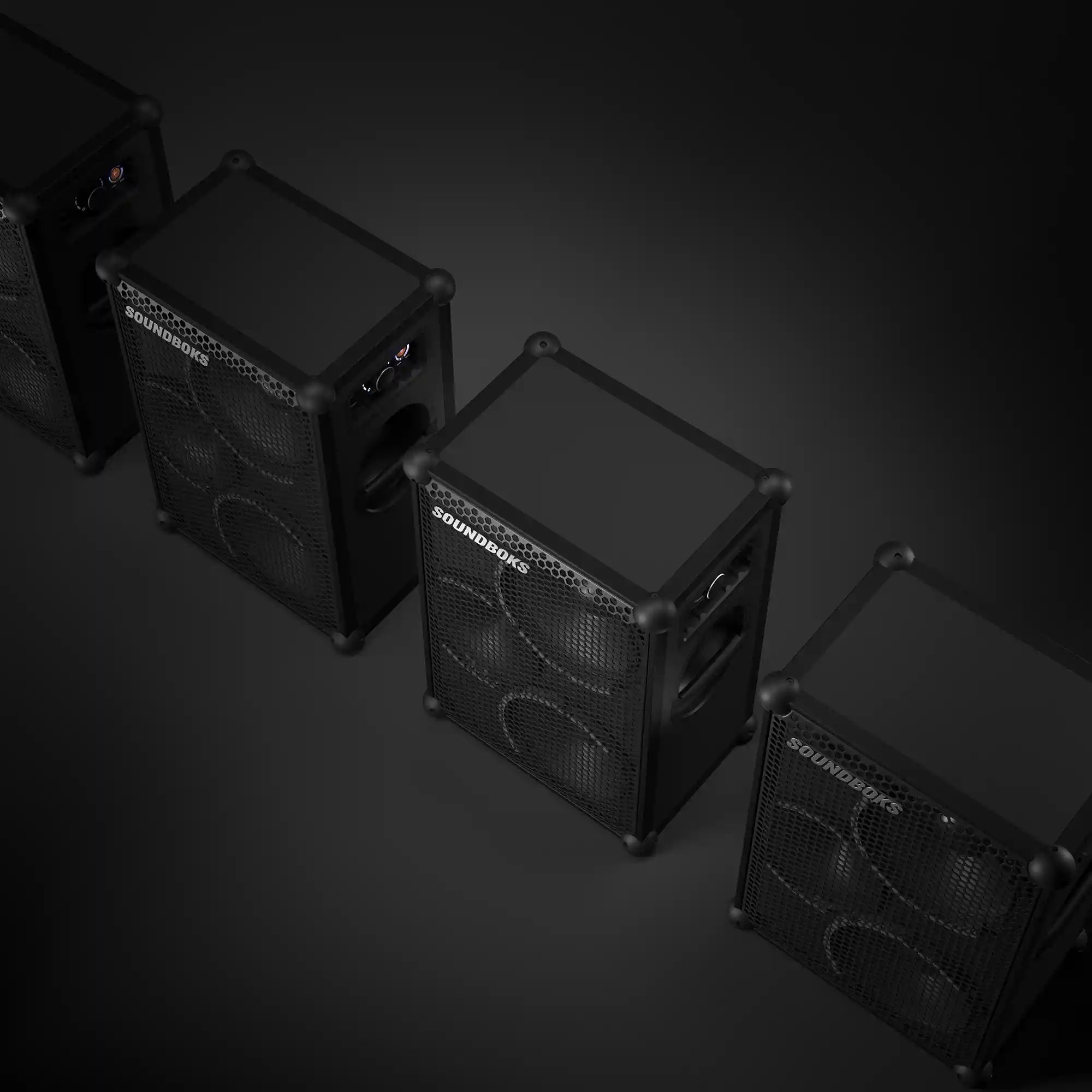

TEAMUP CONNECTION
▪ Wirelessly connect up to 5 (total) nearby New SOUNDBOKS(2019) speakers (SKAA network)

PRO PANEL
▪ 2 × Combo microphone/instrument (XLR, 1/4”) input
▪ 1 × 3.5mm Stereo Input
▪ 1 × 3.5mm Stereo Output
▪ Bond Button for advanced JOIN settings

APP

SOUND SETTINGS
Custom EQ or selection of our optimised sound modes (Bass+, Power, Indoor)
True stereo roles (left / right / mono)

PRO PANEL
Configurations for Guitar, DJ mixer, Mic, Active instruments
Full input EQ control for the Pro inputs (XLR or 6.3mm Jack)

GENERAL
Volume adjustment
Disconnect/Power off
Intuitive setup of a wireless setup, TeamUp. Connect to a specific Host-speaker or switch Host
See the inputs connected to you speakers to understand your wireless setup

WIRELESS SETTINGS
Auto-connect for audio
Pincode for audio and the app (hijack prevention)
Toggle for SKAA Pro mode, for reduced latency in a wireless multi-speaker setup

FIRMWARE UPDATE
Upgradeable software so we can continuosly upgrade your products!
